SPECIFICATIONS

Applicable Object: For Game

Brand Name: HXSJ

Choice: yes

Hign-concerned Chemical: None

Interface: USB

Keyboard Connection: WireLess

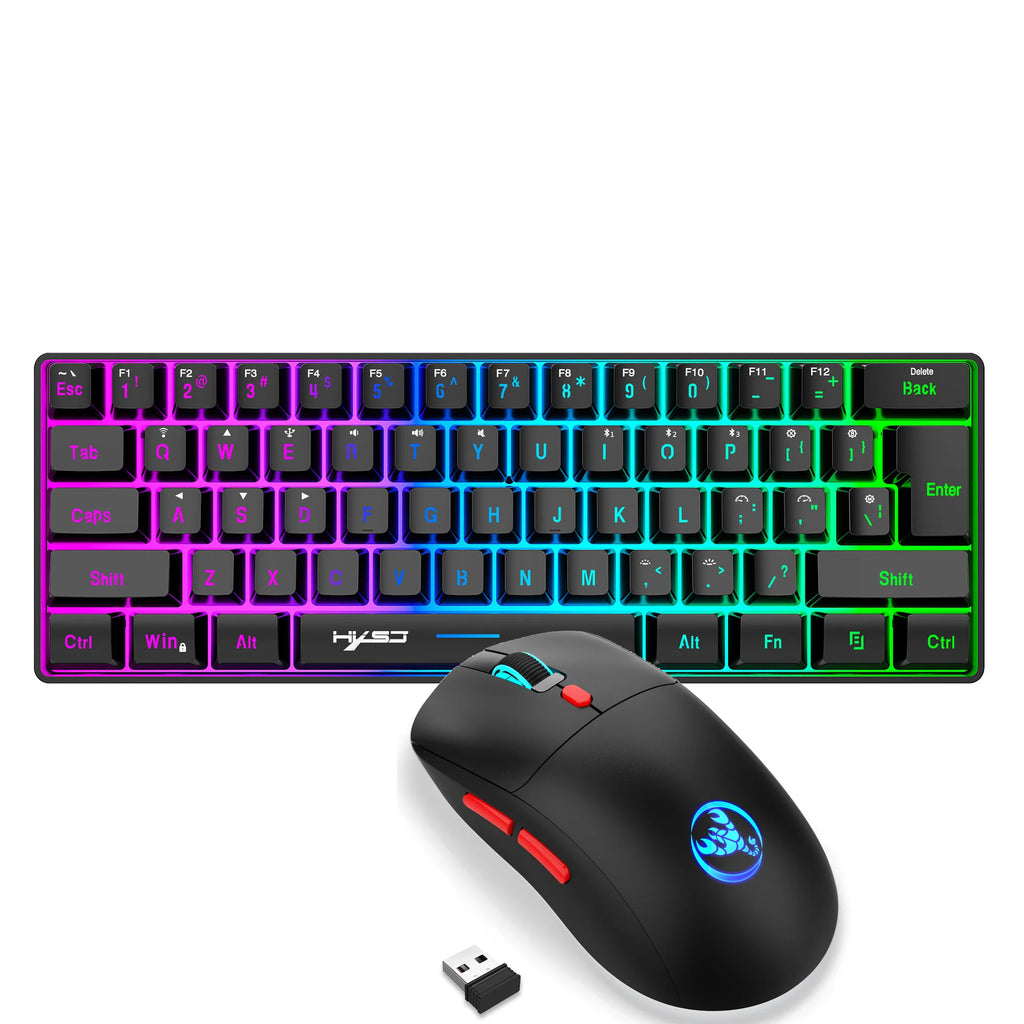

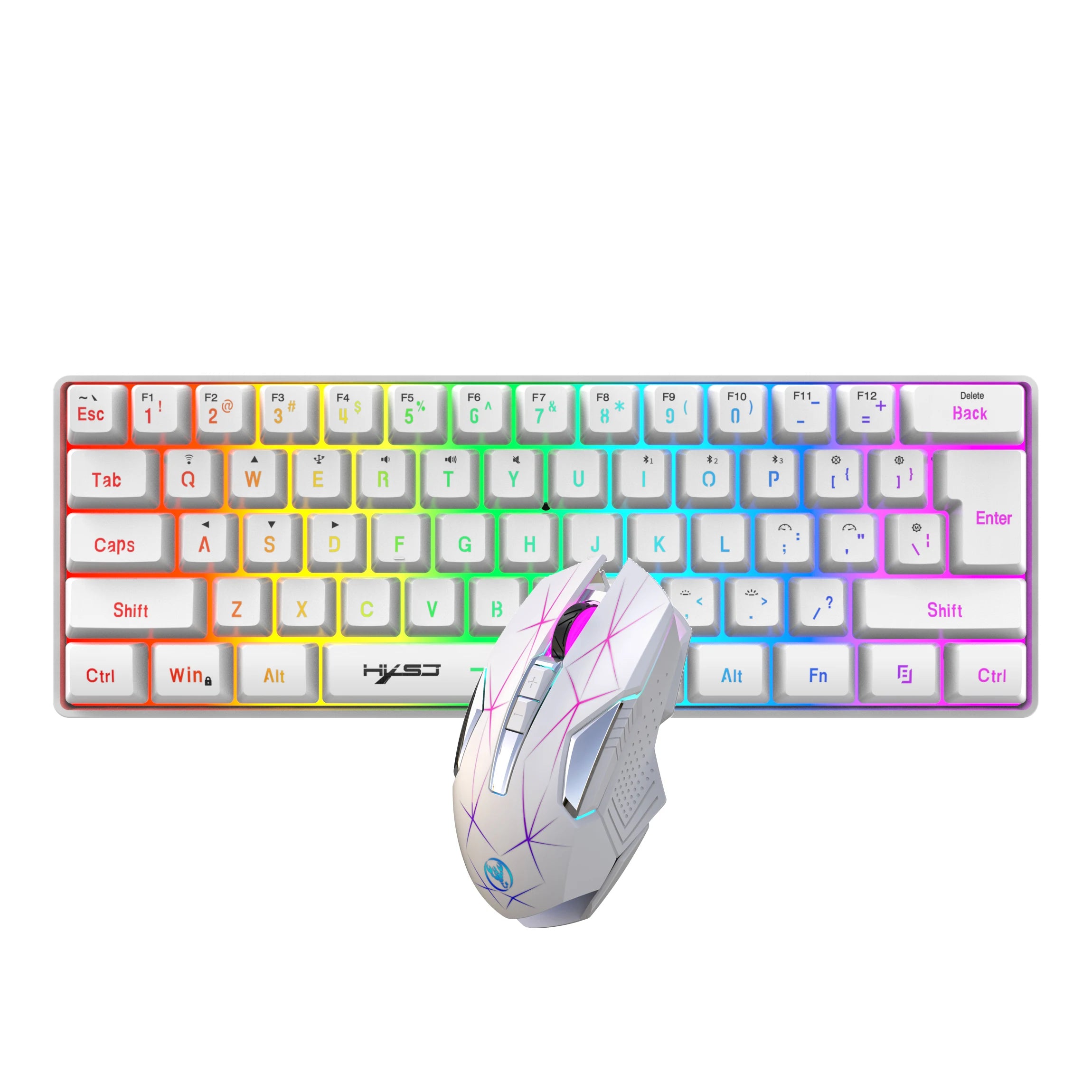

Model Number: L500 Set

Mouse Connection: WireLess

Origin: Mainland China

Package: Yes

Supports Human Engineering: Yes

Type: ERGONOMIC,Gaming,Mini,WireLess

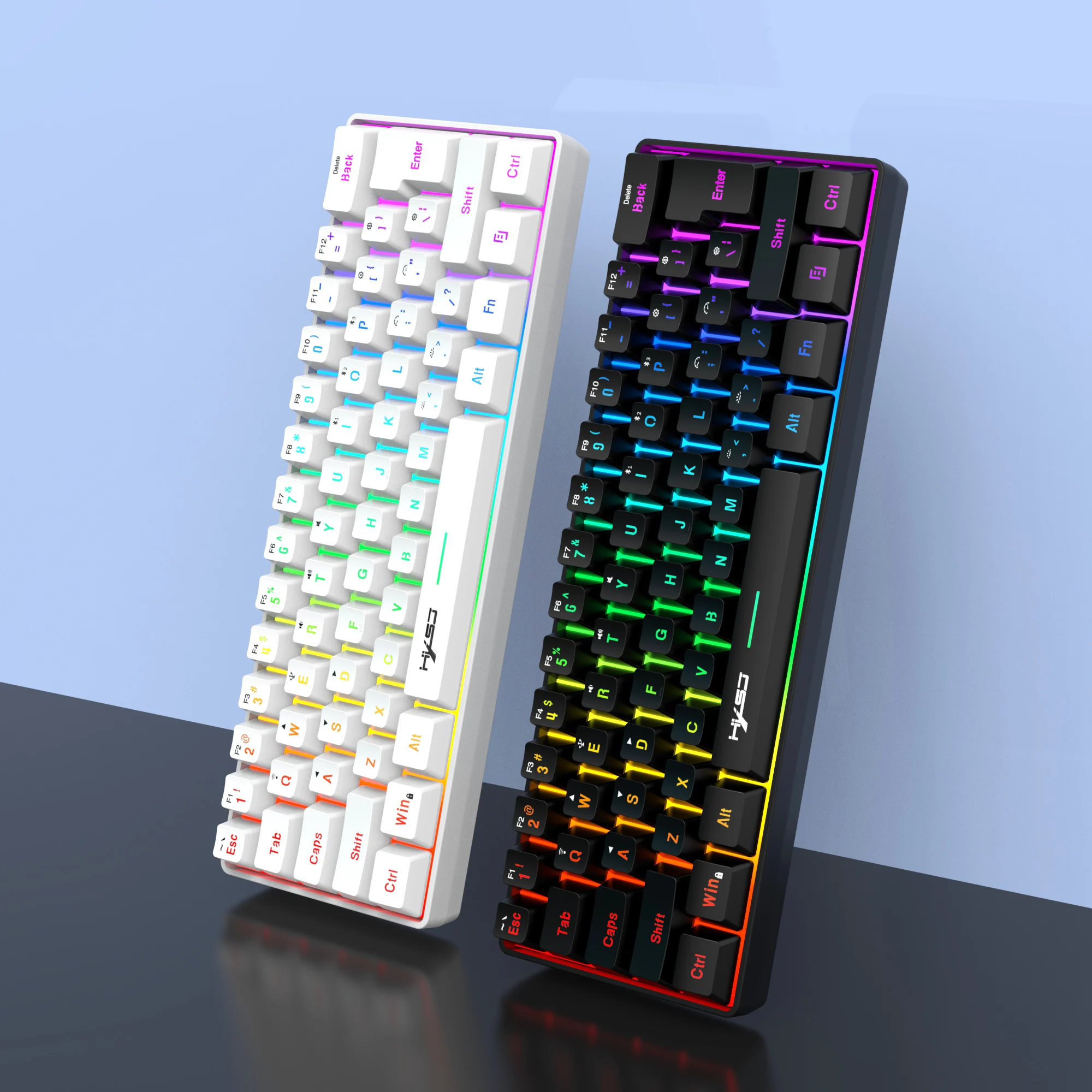

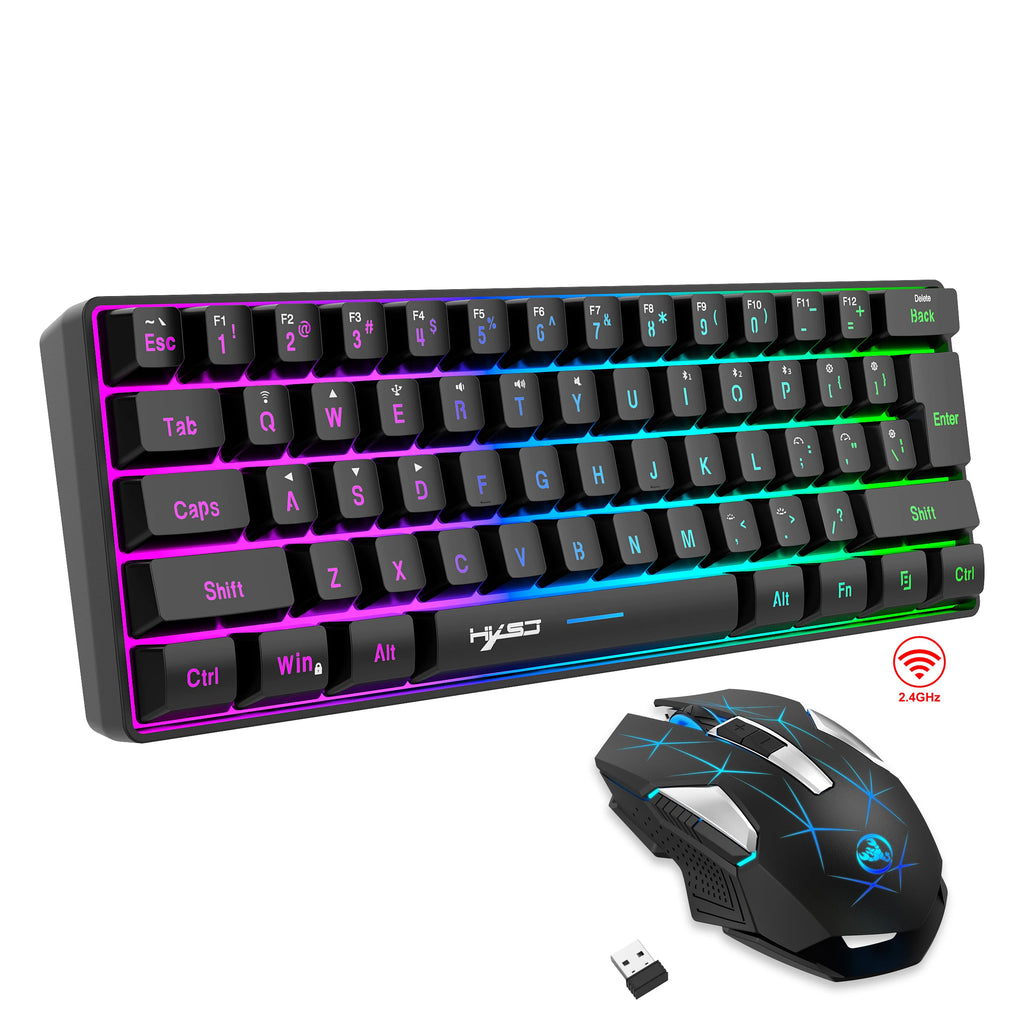

Keyboard specifications:

Specification item：Wired +2.4G+ Bluetooth Triple mode keyboard

Product number: L500 Compact membrane keyboard

Interface Type : USB TO TYPE-C Interface

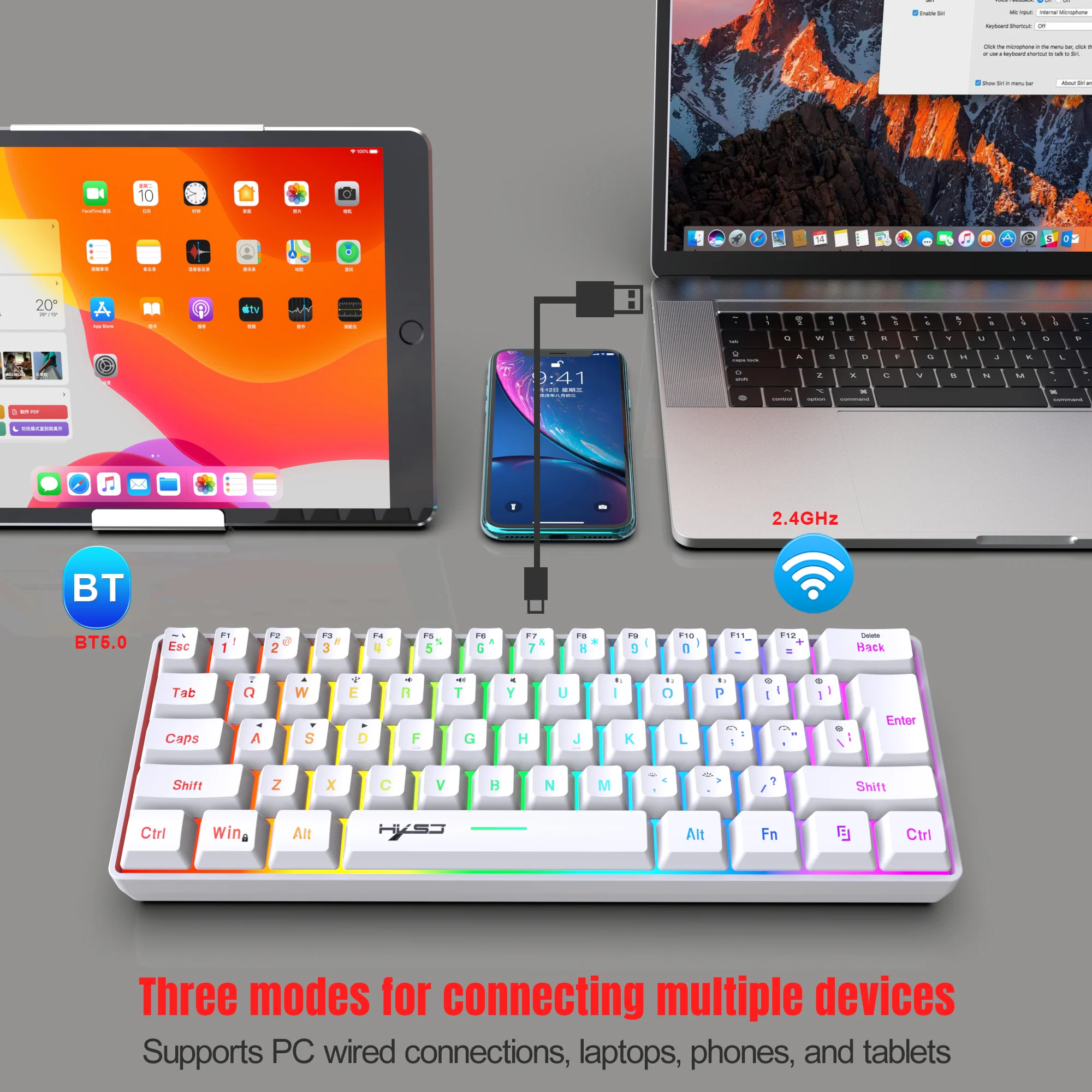

Connection method：Wired + BT5.0 + 2.4G Triplemode

Built-in battery capacity: 2000mA Rechargeable lithium battery

Light mode: Multiple RGB light modes

Number of keys: 61 Keys

Button life:10 million times or more

Operating Voltage:3.3V~4.2V DC

Working current:50mA (MAX)

Charging Cable:1.7m±0.3m Type-C Interface

Key cap material :ABS

Key cap production process:Oil injection radium carving process glow

Multimedia:With multimedia (laser carving)

Product weight: 391g

Product size: 29.2*10.2*4CM

Packagesize: 32*13*4.5cm

Packageweight: 540g

Package included:

1x Gaming keyboard

1x USB receiver

1x 1.7M Type-C charging cable

1x English User manual

System compatibility:

Compatible with IBM PC Win98SE/Me/2000/XP/VISTA/WIN 7/WIN10/WIN11 and Mac OS and Linux the latest system

Supported devices:

Multiple devices such as mobile phones, tablets, and desktop computers can be connected at the same time.

Compound function key switch:

Backlight adjustment:

FN+{[= Turn on and off the light

FN+]}= 8 color switch

FN+\|= RGB switch

FN+>.= Light + 4th gear

FN+.<= Light - 4th gear

FN+:; = Slow four breaths

FN+ '" = Breathe fourgears faster

Compound function key switch:

FN + Q = 2.4 G

FN+I= BT 1

FN+O= BT 2

FN+P= BT 3

FN+E= Wired

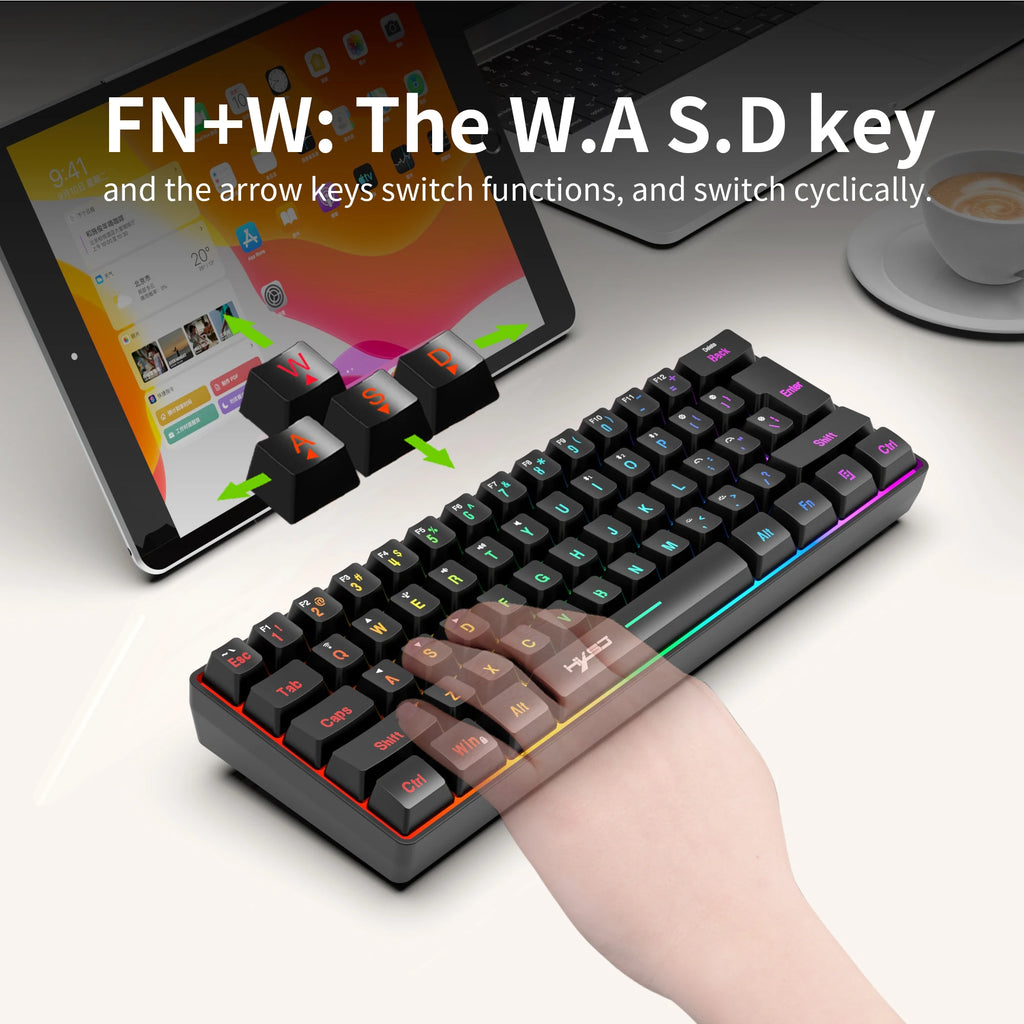

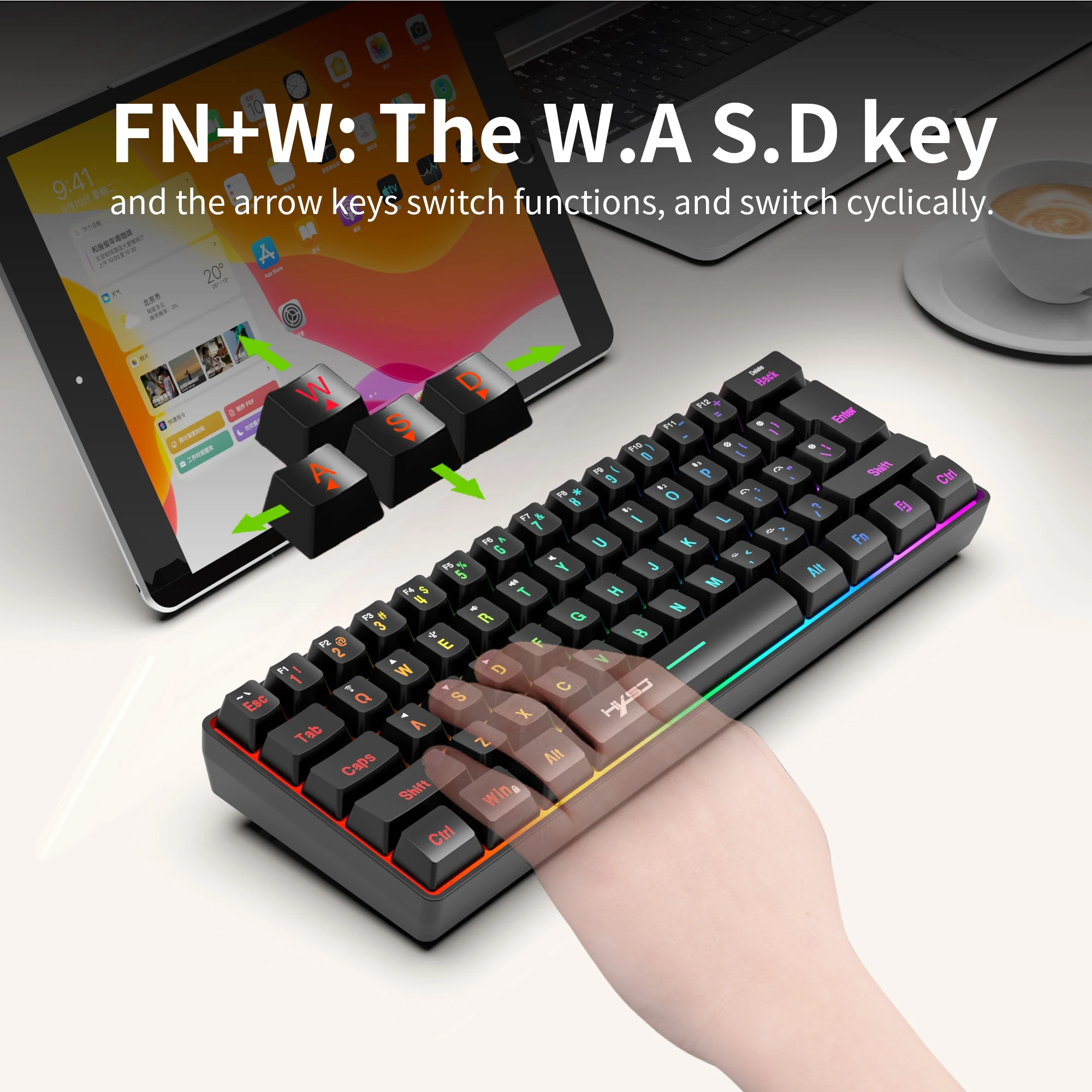

FN+W= Toggle arrow keys

FN+R= Volume -

FN+T= Volume +

FN+Y= Mute

FN+ESC=~`

FN+1! key: F1

FN+2@ key: F2

FN+3# key: F3

FN+4$ key: F4

FN+5% key: F5

FN+6^ key: F6

FN+7& key: F7

FN+8* key: F8

FN+9 (Key: F9

FN+0) key: F10

FN+- key: F11

FN+ =+ key: F12

FN+Back key: Delete

FN+Win =Lock the key Win and APP

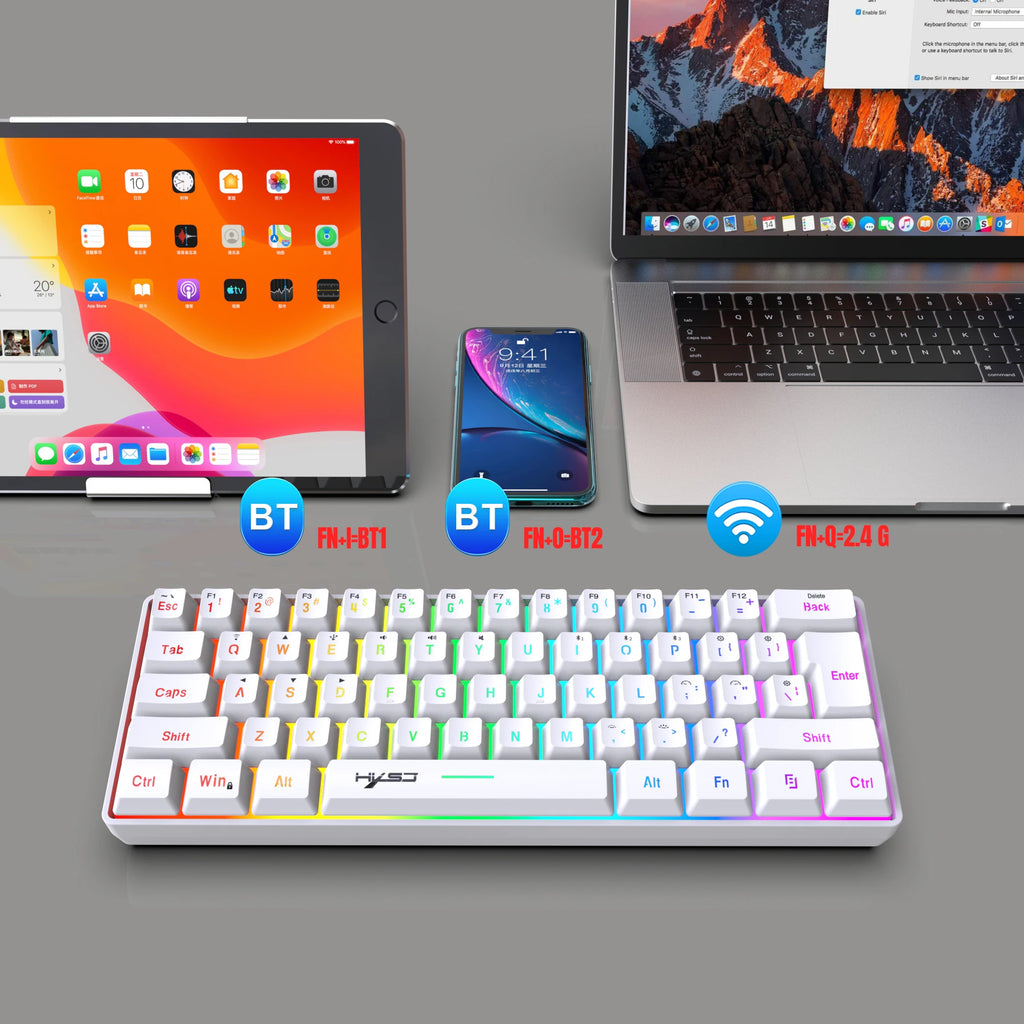

Bluetooth Connection:

1.Turn the switch at the bottom of the keyboard to ON.

2. Press and hold the key FN+I= BT1, FN+O= BT2, FN+P= BT3. At this time, the green light flashes

rapidly under the F3 key, and the keyboard enters the state of sending Bluetooth code pairing (code

pairing mode).

3. Open your Bluetooth device search, find BTname, click Connect, LED stop flashing, Bluetooth

connection successful.

2.4G connection mode:

1. Turn the switch at the bottom of the keyboard to ON.

2. Hold down the FN+Q key. The green indicator under the F3 key blinks rapidly. Keyboard entered 2.4G

pairing mode.

3. Insert the 2.4G receiver. After the connection is successful, the green light of E key will no longer

blink.

Wired connection:

1. Turn the switch at the bottom of the keyboard to OFF.

2. Hold down the FN+E key. The green indicator under the F3 key blinks rapidly. Plug the keyboard cable USB port into the computer Settings to complete the connection.

◎Automatic sleep power saving mode:

Supports not operating the keyboard within 30 seconds, the backlight turns off by itself, the keyboard enters the sleep state, press any key to wake up.

◎The charging indicator light is red when charging, and the light is off when fully charged.

When the low voltage indicator is flashing, it indicates that the battery is insufficient, please charge it

in time;

◎Built-in 2000mA capacity battery, fully charged with 5V/1A equipment in about 2 hours; you can continue to use this product while charging.
